Acoustical Foam Products Most configurations of foam material are available in traditional polyurethane foam, as well as melamine foam, a Class 1 Fire Rated material which is acceptable in schools, government buildings and other public facilities which require the highest fire rating. Polyurethane Foam BERMUDA BROADBAND Product Description: The Bermuda Broadband is an acoustical foam absorber that is designed to be mounted in room corners.
It is especially useful to trap bass that is more intense at the intersection of walls. The rolling pattern front provides increased
area for greater sound absorption.
Colors: Charcoal, Blue, Brown, Beige, Burgundy, Hunter Green
Size: 12" outer edges; 17" face; 48" high
Package: 2 mating pairs per box, 4 units total
Also available: Bermuda "Shorts"
Twice as many pieces: 8
Half the size per unit: 24" high
Average (NRC Frequencies) = 29.3 Sabins / Unit.
Measurements made with one specimen in each corner, 2 pieces 4 ft.
Available in standard polyurethane (as shown) as well as FireFlexTM Class 1 Melamine.
SOUND CYLINDER Product description: The Sound Cylinder is a free standing foam sound absorber with rolling pattern surface to match the Bermuda series traps. Applications: Quick mixing area or vocal booth The cylinder is bored half way through the center axis to allow mounting on a typical studio microphone stand. Colors: Charcoal, Blue, Brown, Beige, Burgundy, Hunter Green Size: 10" diameter (nominal), 48" high Package: 2 units per box
Average (NRC Frequencies) = 29.3 Sabins / Unit. Measurements made with one specimen in each corner, 2 pieces 4 ft.

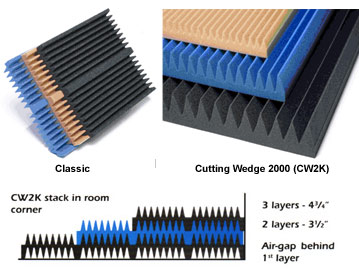

THE CUTTING WEDGE
Cutting Wedge can be installed to create absolutely seamless absorptive walls, and enhance imaging by reducing unwanted reflections. The "2000" design enables you to increase thickness quickly by nesting layers instead of buying different and incompatible products. By adding 2 or 3 nested layers of CW2K, you can control energy hotspots in corners or in the path of first reflections quickly and efficiently. Cutting Wedge makes creating virtual bass-traps in corners, using 3 or 4 nested layers of CW2K, simple and efficient.
Available
colors: Melamine Foam
FabTec Panels
Cloudscape ® Ceiling Tiles
Ordinary ceilings take on new levels of visual excitement with these
sculptured tiles. They are designed to simply drop right into
existing 24" x 24" ceiling grid systems. Available in stock colors
plus custom "color match". (Ask our customer service reps for
details.) Sound absorption of approximately 90%.
| |||||||||||||||||||||||||||||||||||||||||||||||
Triangle Trap Corner Absorbers
Stand Alone Absorber
